Commercial Roof Insulation in Texas: R-Value, Code, and Energy

See the full roof assembly, deck to membrane →

Here's the part that gets skipped in most talk about commercial roof components: your membrane gets all the attention because it's the part you can see, but it isn't the part keeping your building comfortable or your energy bill in line. That's the insulation, and it lives out of sight between your roof deck and the membrane on top. On a low-slope commercial roof, that insulation is almost always rigid board, not the batts you'd picture in a house.

It's doing more than one job at once. Strip the jargon and it comes down to three:

• It hits a number your energy code requires. Every low-slope commercial roof in Texas has to meet a minimum R-value. That's not optional, and it's not ARP's number; it's the adopted building code's.
• It controls your energy load. In a Texas summer, the insulation is the difference between an HVAC system that cycles and one that runs flat out all afternoon. That's real money, every month, for the life of the roof.
• It carries your warranty. How the insulation is specced and attached is written into the conditions many manufacturers hold your system to. Get it wrong and the warranty you paid for has a hole in it.

If you inherited this building, you probably never picked the insulation and can't tell me what's up there. That's normal; most property managers can't. The assessment is where you find out.

Here's how the layers sit on a typical low-slope roof:

Two of those four layers are insulation work. That's why it earns its own conversation before anyone quotes you a system.

Let's be straight about what R-value is, because it gets sold as a luxury when it's really a floor. R-value measures how well the insulation resists heat moving through it. Higher number, better resistance. On a commercial roof, the code sets a minimum you have to meet: you can go above it, you can't go below it.

That minimum comes from the energy code your jurisdiction has adopted, which in Texas is a version of the International Energy Conservation Code (IECC). The exact figure depends on two things: your climate zone and which edition of the code your city or county enforces. Most of Central and South Texas sits in climate zones 2 and 3, and for insulation set entirely above the deck, which is how nearly every low-slope commercial roof is built, the 2021 IECC commercial provisions (Table C402.1.3) set a prescriptive minimum of R-25 continuous insulation in both zones, the same figure as the 2018 edition. Your local building department's adopted edition, plus any local amendment, sets the exact number, and a reroof has to hit it.

Here's what that means in board thickness, because that's the part that shows up on your estimate. Polyiso runs about R-5.6 to R-6 per inch, so hitting an R-25 minimum takes a little over four inches of it, and that's usually installed in two staggered layers rather than one thick one, so the seams don't line up. More on why the layering matters in a second.

The point for you as the person signing the check: R-value on your roof is a compliance line, not a sales tactic. A bid that quietly under-insulates to shave the total isn't cheaper; it's a roof that either fails inspection or forces a fix later. When you see the R-value on a scope, you're reading a code requirement, the same way you'd read a fire rating.

Three rigid boards dominate commercial insulation: polyiso, expanded polystyrene (EPS), and extruded polystyrene (XPS). Polyiso (short for polyisocyanurate) is the one you'll see on most low-slope commercial reroofs, and there are reasons it earns the spot.

It carries the highest R-value per inch of the three, so you hit your code number in the least thickness. That matters when you've got rooftop equipment, door thresholds, and flashing heights to work around: every inch of board you don't need is an inch you're not fighting. It also holds a fire rating the assembly needs and bonds well to the adhesives and coverboards the rest of the system uses.

The staggered-layer detail is where a real spec separates from a cheap one. Install polyiso in two offset layers instead of one thick slab and you break up the seams, so heat and air don't shortcut straight through a gap between boards. That's called thermal bridging, and it's the quiet reason two roofs with the same R-value on paper don't perform the same in the field. The board we spec, and the way it's layered, is chosen for the assembly, not pulled off whatever's cheapest on the truck that week.

One honest note on polyiso and water, because it connects to a problem you may already have: once polyiso gets wet, it stays wet and loses its R-value for good. That's a separate diagnosis worth its own read: see wet roof insulation if your roof has leaked more than once.

Here's something that catches a lot of property managers off guard: there's usually a layer between your insulation and your membrane, and it's the first thing a thin bid drops.

A coverboard is a thin, dense board (gypsum-based or high-density polyiso) that sits on top of the soft insulation, right under the membrane. Polyiso is a good insulator but it's soft; step on it, drop a tool, take a hailstone, and it dents. The coverboard is the hard hat over it. It gives you a firm, uniform surface for the membrane to bond to, adds puncture and hail resistance, improves the fire rating, and helps the whole assembly hold down in a wind event.

It's also frequently a warranty condition. Many manufacturers, GAF EverGuard among them, require an approved coverboard for the system warranty and for the FM wind-uplift ratings that come with it. Leave it off and you've saved a few cents a square foot and put a check mark next to a reason the warranty can be denied.

So when you're reading two commercial reroof bids and one is meaningfully cheaper, the coverboard is one of the first places to look. A missing coverboard isn't a discount. It's a softer roof and a weaker warranty, priced to look like a deal.

R-value isn't an upsell — it's the code minimum and your energy bill written into the same number. Texas code sets the floor your roof has to hit, and every inch of polyiso above that floor pays you back in cooling load. I spec the insulation and the coverboard to the assembly and to the warranty the manufacturer is going to hold you to, not to fatten a bid. Under-insulate to shave the number today and you either fail inspection or you cook money through the roof for the next twenty years.

Once you know how thick the insulation is, the next question is how it's held down, and there are two honest answers, each right for a different building.

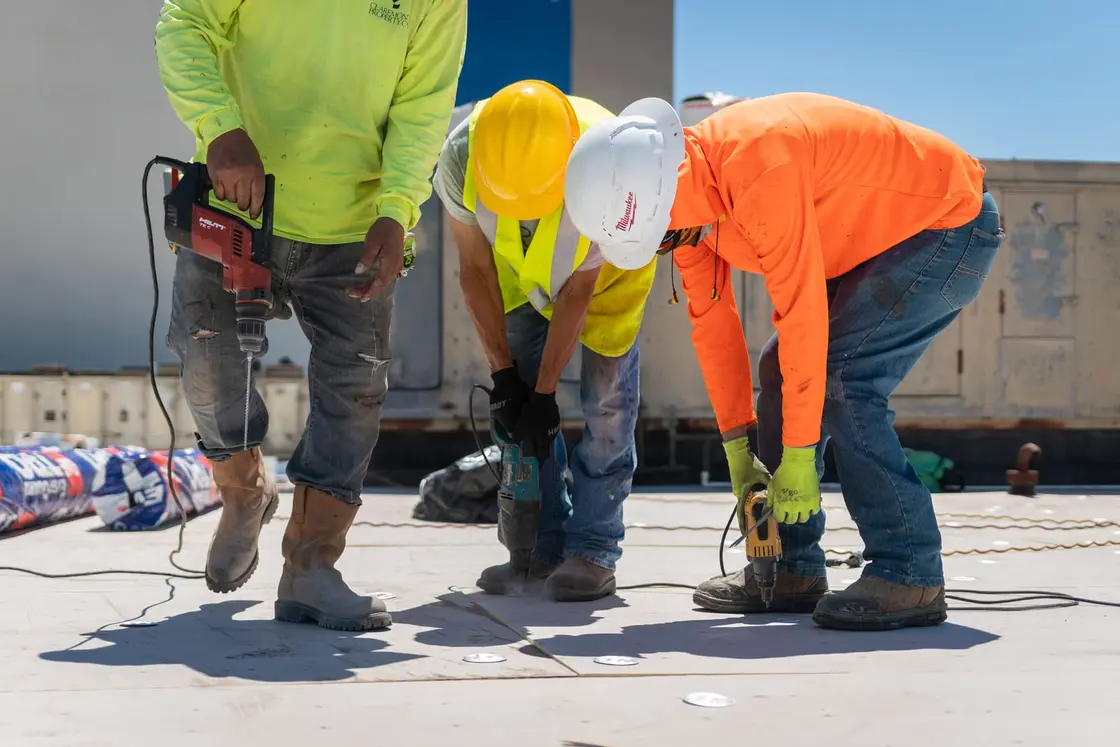

Mechanically fastened means the boards are screwed to the deck with fasteners and plates. It's faster, it costs less, and it's a proven approach on plenty of buildings. The trade-off is that every fastener is a small path for heat to travel through, and in a high-wind or high-spec situation the attachment schedule gets dense.

Fully adhered means the boards are set in adhesive instead of fasteners. It costs more and takes longer, but it eliminates the fastener thermal bridges, tends to perform better under wind uplift, and is often what the higher warranty tiers and FM ratings want to see.

Neither one is "the good option"; the right call depends on your building's wind exposure, your deck, and the warranty you're after. What you want is a contractor who tells you which one your building calls for and why, not one who defaults to whatever's fastest to install.

Short version: yes, and in Texas the math is friendlier than most owners expect. Your roof is the surface taking the most direct sun on the building, all day, every summer. The insulation under the membrane is what keeps that heat from pouring into the space your HVAC is fighting to cool. More R-value, up to the point of diminishing returns, means less load, shorter runtimes, and a lower monthly number.

The reason nobody connects the two is that the roof and the utility bill sit in different columns of your budget. But a building running an old, thin, or wet insulation layer is quietly overpaying to stay cool, month after month, and no line item ever says "roof" on the electric bill.

Here's the honest cost framing, because you're going to ask. You don't buy insulation as a standalone product you can shop; it's a line inside a reroof. A full commercial tear-off and replace in Texas runs roughly $14.00 to $20.00 per square foot all-in, and that number already includes insulation and coverboard built to your code R-value, plus tear-off and disposal. (Updated August 2026. Texas commercial market pricing. Final price depends on your deck condition, the existing roof, rooftop access, and the R-value target your jurisdiction enforces.)

Choosing to insulate above the code floor adds incremental board cost, not a whole new system, and in Texas cooling season, that incremental cost is usually the fastest-paying part of the whole roof.

One distinction keeps two conversations from getting tangled, so let's draw the line clean.

Flat-stock insulation, constant-thickness board, is what this page is about. Its job is R-value and thermal performance: hit the code number, control the energy load, protect the assembly. It's the insulation as a thermal layer.

Tapered insulation is the same polyiso, but cut to a slope so it moves water across the roof to the drains. Its job is drainage, not R-value. A dead-flat roof ponds; tapered board builds the pitch that sends water where it needs to go.

Most commercial reroofs use both: a base of flat-stock for the R-value, with tapered board built up over it to create the slope. If ponding water, drainage, or slope-to-drain is what's actually on your mind, that's a different job, and it lives on tapered insulation. If your question is R-value, energy, and code, you're in the right place. And if you're still working out what category of roof you even have, start at low-slope roof types.

Our job is to hand you an insulation spec you can defend to ownership, not a number you have to take on faith. On a reroof, that runs in a fixed order:

1. We confirm your code R-value. We pull the edition your jurisdiction actually enforces and the climate zone you're in, so the target is the real one, not a guess.
2. We read your deck and your existing roof. Steel, concrete, or wood changes the attachment. What's already up there changes whether you're tearing off or building over, a call the single-ply membrane selection ties into.
3. We spec the board and the layers. Polyiso to hit the number, staggered layers to break the thermal bridging, and a coverboard sized to the membrane and the warranty.
4. We choose the attachment for your building. Mechanically fastened or fully adhered, based on your wind exposure, deck, and the warranty tier you want, with the reasoning in writing.
5. We put it on paper. The R-value, the boards, the coverboard, the attachment, and why each was chosen, so you can explain the roof to ownership without taking our word for it.

The person reading your building matters here. Randal Williams, our COO, is a former commercial high-rise field engineer and Xactimate expert with 15+ years in roofing and construction. He has scoped and documented more than $7 million in insurance claim work across Texas, including single commercial claims above $2 million, supporting property managers and building owners through the claims process as the contractor of record. Speccing an assembly to the code and the warranty is exactly the work he came up on.

The install crew we deploy and supervise handles the tear-off and the board work; our project manager inspects it as it goes, so the roof you paid for is the roof you get. When the existing system is past insulating over, the honest recommendation is a commercial roof replacement, and we'll show you why.

Whether you hire ARP or someone else, ask every contractor who quotes your roof these three. The answers separate a real scope from a thin one.

1. "What R-value are you speccing, and what does code require here?" A real contractor names your code minimum and the R-value they're installing, and they match. If the answer is vague, or the R-value comes in under the code floor to make the price work, the bid is a problem waiting for an inspector.

2. "Is there a coverboard in this, and is it required for the warranty?" Many manufacturers require an approved coverboard for the system warranty and the wind ratings. A bid that leaves it off is cheaper on paper and softer on your roof. Get the coverboard, and the warranty condition, in writing.

3. "Mechanically fastened or fully adhered, and why that one for my building?" There's a right answer for your wind exposure, your deck, and your warranty tier. A contractor who can explain the choice is speccing your building. One who defaults to whatever installs fastest is speccing their schedule.

A commercial insulation assessment is the right move if you:

• Are planning a reroof and want the R-value specced to code before you compare bids.
• Have a building whose energy bills feel high and want to know if the roof is the reason.
• Are reading two commercial bids and can't tell why one is cheaper.
• Need documentation you can hand to ownership before you commit capital.
• Want one contractor to spec, install, and stand behind the assembly and its warranty.

It's probably not the fit if you:

• Need the lowest number on the page regardless of whether it meets code or carries a coverboard.
• Want a price today with no look at your deck, your existing roof, or your jurisdiction's code.
• Are chasing ponding or slope-to-drain, which is a tapered insulation job, not this one.

• **International Energy Conservation Code (IECC), 2021, Chapter 4 Commercial:** the energy code (in adopted Texas editions) that sets the minimum roof R-value by climate zone referenced throughout this page.
• ASHRAE 90.1: the companion energy standard for commercial building envelope insulation minimums.
• FM Global: wind-uplift ratings that the insulation attachment and coverboard specification are built to satisfy.
• NRCA (National Roofing Contractors Association): industry guidance on rigid-board insulation, coverboards, and attachment methods.

Manufacturer Certifications:

• GAF GoldElite Commercial Contractor
• Elevate Red Shield Licensed Contractor
• UNIFLEX Premier Elite Contractor

Industry Membership:

• CTRCA (Central Texas Roofing Contractors Association) Member
• BBB A+ Accredited

If you're planning a reroof or reading bids you can't quite square, the insulation is where the honest ones separate from the thin ones. We'll confirm your code R-value, read your deck, and spec the polyiso, coverboard, and attachment in writing, so the roof you buy is the roof that passes and the roof that pays you back.
